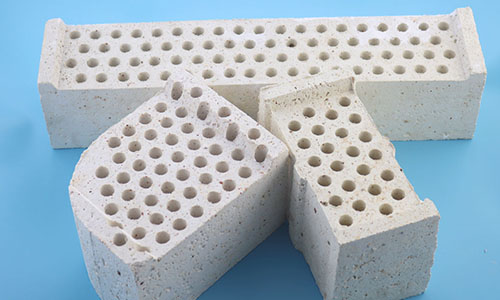

The baffle brick is also called a fire block and a block brick， and is generally installed behind the burner of the regenerative heating furnace for supporting and reinforcing the Ceramic regenerator material. It can be used in combination with honeycombs in various regenerative combustion systems. It is used in the front end of the regenerator of a regenerative heating furnace. Its function is to protect the regenerator and prolong the service life of the regenerator. It can guarantee the best performance and service life of the regenerator during use. greatly reduce the steel mill'" s shutdown time and reduce.
Physical and Chemical Indicators
| Item |
materials |
| aliminum |
Corundum mullite |
Electrofusion corundum |
Chrome corundum |
| chemical compositionAL2O; |
60-65 |
65-65 |
70-75 |
50 |
| Bulk density1500C*3h≥ |
2.5 |
2.5 |
2.6 |
3.1 |
| Compressive strength 1500C*3h≥ |
70 |
80 |
100 |
150 |
| Anti-fold strength 1500°C*3h≥ |
8.0 |
8.5 |
11 |
12 |
| Change rate of line1500'C*3h |
±0.6 |
±0.5 |
±0.3 |
±0.3 |
| Maximum use temperature ("C) |
1400 |
1450 |
1550 |
1700 |
Product specifications (Specifications can be customized according to customer requirements)
| specifications(length *width* height mm |
Aperture |
| 200*80/100*100 |
¢12-18mm |
| 250*80/100*100 |
¢12-18mm |
| 300*80/100*100 |
¢12-18mm |
| 350*80/100*100 |
¢12-18mm |
